Parameters:

Refrigerants: R11, R12, R13, R22, R23, R32, R113, R114, R123, R124, R134A, R290, R401A, R401B, R402A, R402B, R404A, R406A, R407A, R407C, R408A, R409A, R410A, R413A, R414B, R416A, R417A, R420A (=H₂O), R422A, R422B, R422D, R424A, R426A, R427A, R428A, R434A, R437A, R442A, R448A, R449A, R450A, R452A, R453A, R454A, R454B, R455A, R502, R507A, R508B, R510A, R513A, R600A, R728, R922B (=R1234YF)

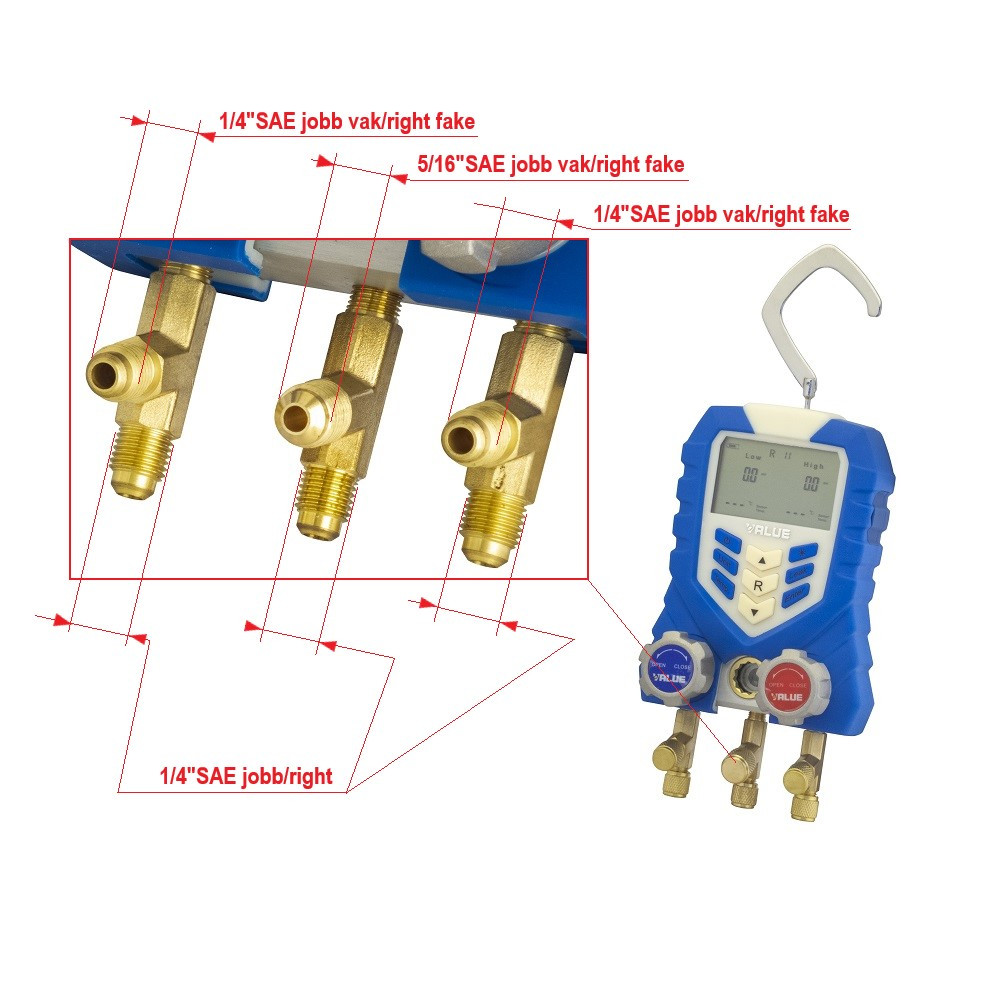

Pressure Connection: 3 x 1/4"SAE

Temperature Connection: 2 x PCC-SMP-K

Pressure Units: psi, bar, KPa, MPa

Temperature Units: C°/F°.

Pressure Scale (Relative Pressure): 0-50bar; 0-725psi; 100-5000kPa; 0,1-5Mpa

Temperature Scale: -50~+150°C / -58~302°F

Maximum Over Pressure: 75 bar; 7500 kPa; 7,5 Mpa; 1087 psi

Pressure Resolution:1psi / 0,1bar / 10kPa / 0,01Mpa

Temperature Resolution: 1°C / 1°F

Pressure Accuracy: ± 0.75% (± 1 digit of reading)

Temperature Accuracy: ±2K

Operation temperature: -10~50°C/-44~122°F

Storage Temperature: -20~60°C/-4~140°F

Environment Humidity: 10~90% RH

Display: LCD display with backlight, Response time: 1 s, Refresh Frequency: 1 s

Manifold Gauge's Weight: 1kg (not include battery)

Set's Weight: 3,6 kg

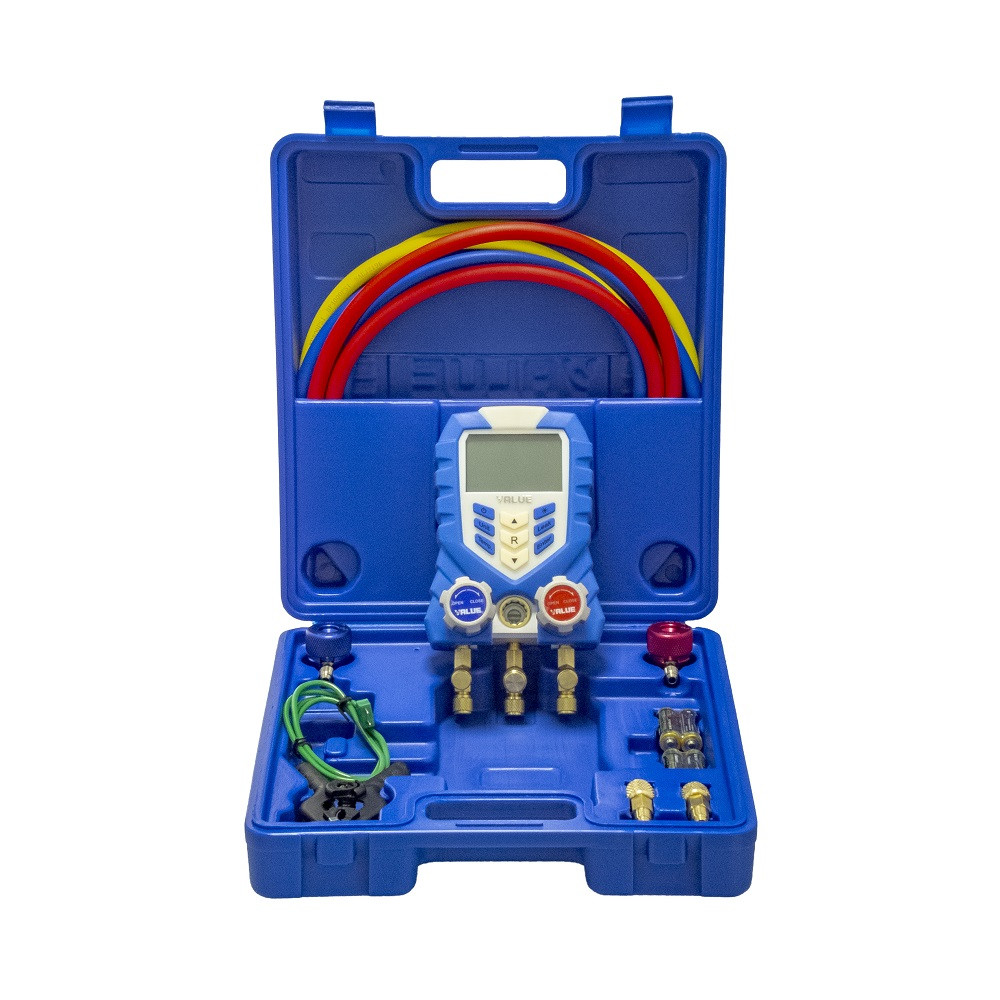

The set includes the following:

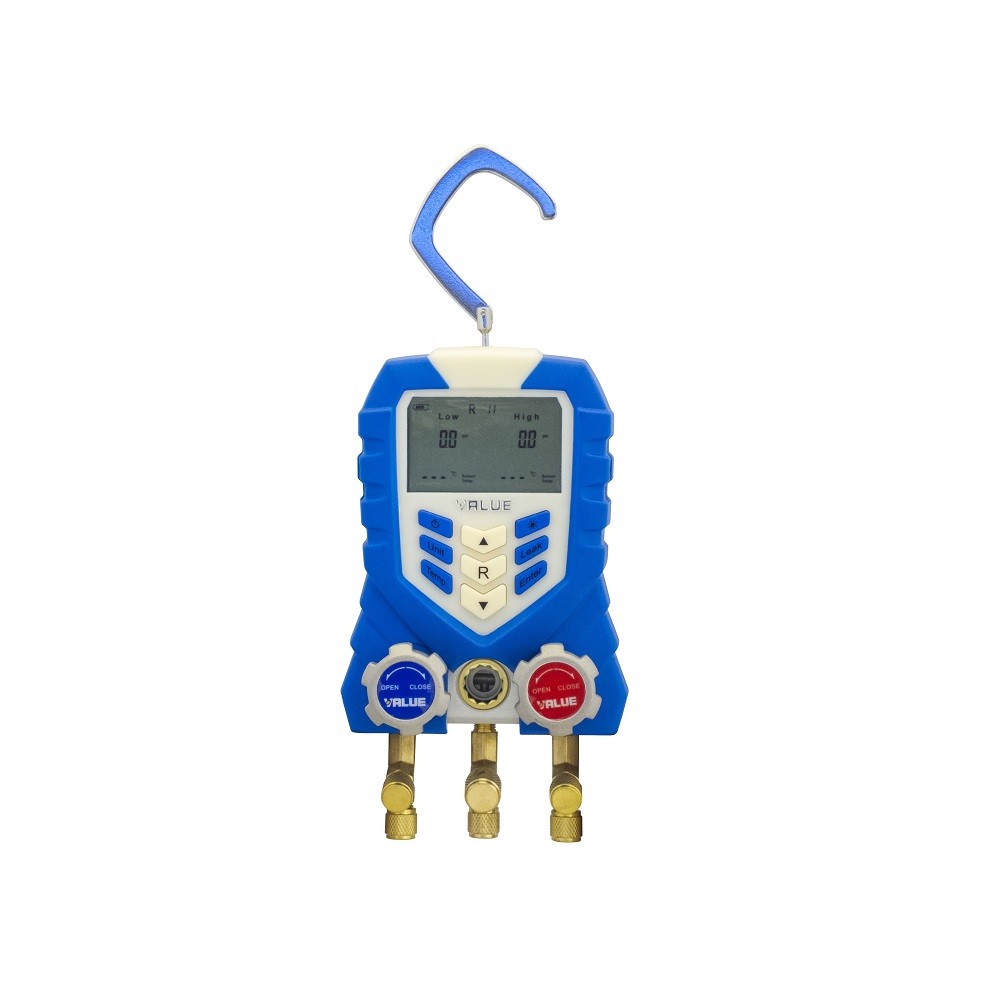

• 1 piece of VDG-1 digital manifold gauge

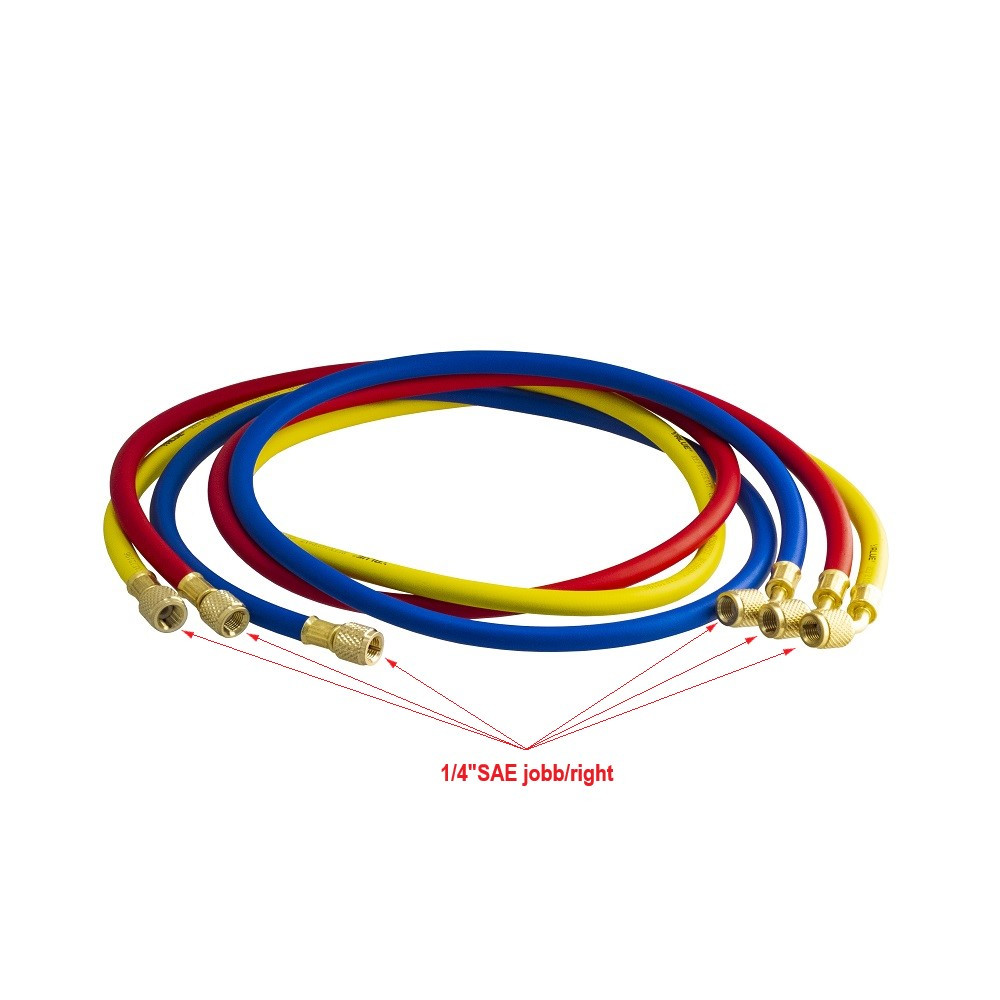

• 1 piece of 150 long cm blue filler pipe ( 1/4"SAE 180° - 1/4"SAE 60°)
• 1 piece of 150 cm long red filler pipe ( 1/4"SAE 180° - 1/4"SAE 60°)
• 1 piece of 150 cm long yellow filling pipe (1/4"SAE 180° - 1/4"SAE 60°)

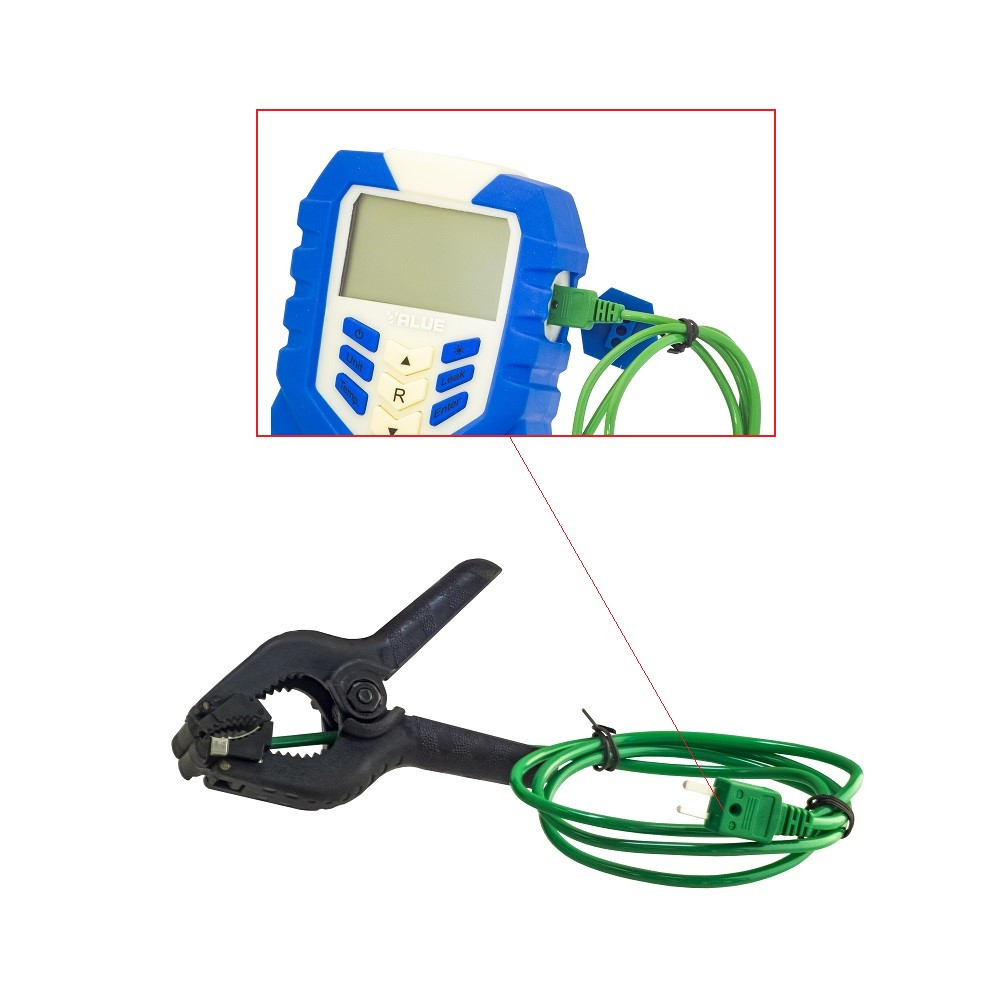

• 1 piece of Temperature Sensor Clamp (K type)

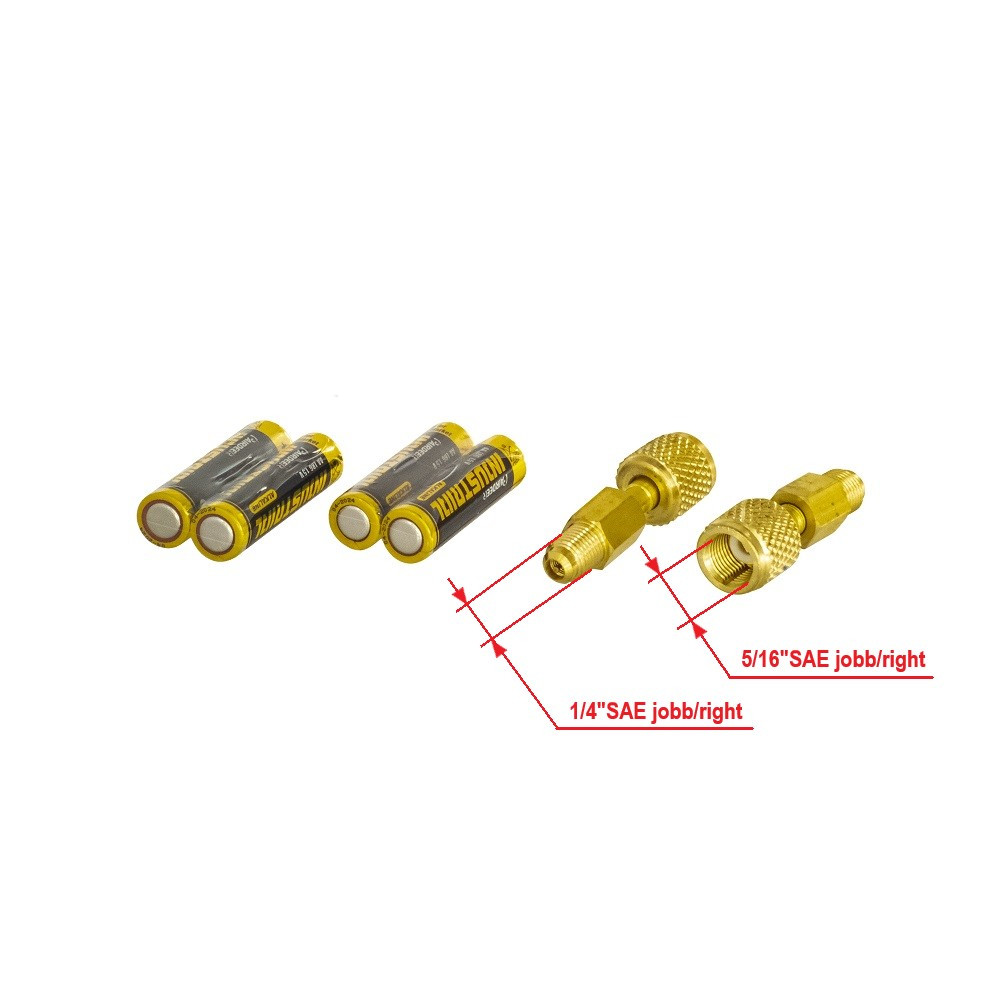

• 2 pieces of Thread Reducer V05 (5/16"SAE Female - 1/4"SAE Male)

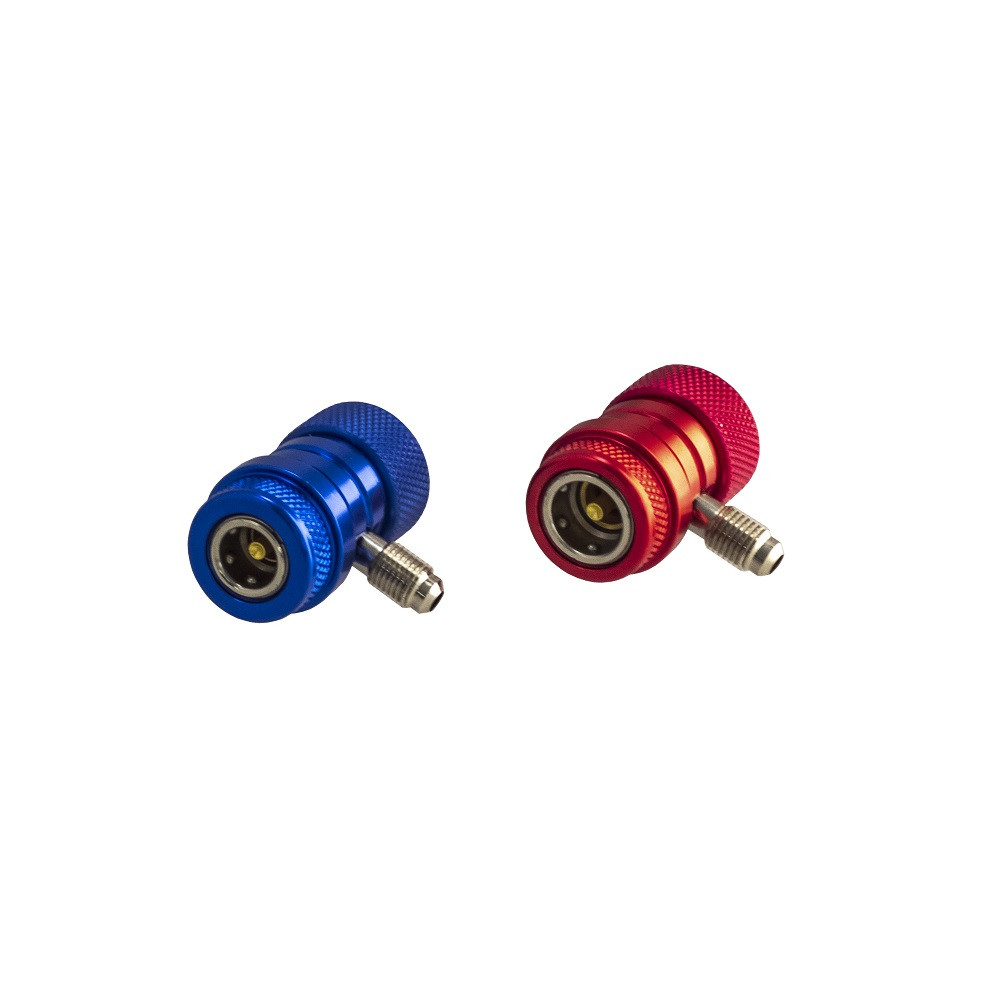

• 1 piece of Quick coupler for R134a LP (VHF-1SA)
• 1 piece of Quick coupler for R134a HP (VHF-2SA)
• 4 pieces of 1,5V AA batteries
• 1 piece of impact-resistant plastic manifold suitcase

Not suitable for measuring ammonia (R717) and ammoniac refrigerant!
