Parameters:

Refrigerants: R22, R32, R290, R410A, 1234yf, R134a, R404A, R407C, R507

Connection: 3 x 1/4"SAE, 1 x 3/8"SAE

Pressure Units: psi, Bar, KPa, MPa, kg/cm.

Temperature Units: C°/F°.

Vacuum Unit: inHg

Pressure Scale (Relative Pressure): 0-50bar; 0-725psi; 0-5000kPa; 0-5Mpa; 0-51 kgf/cm²

Vacuum Sclae: -29,5~0 inHg

Maximum Over Pressure: 75bar; 750kPa; 7,5Mpa; 1087psi; 76,5kgf/cm²

Pressure Resolution:1psi / 0,1bar / 10kPa / 0,01Mpa / 0,1kgf/cm²

Vacuum Resolution: 0,5 inHg

Pressure Measure Precision (at 22°C/72°F): ±2 psi / ±0,2 bar / ±20 KPa / ±0,02 MPa / ±0,2 kgf/cm²

Vacuum Measure Precision (at 22°C/72°F-on): ±1 inHg

Operation temperature: -10~50°C/14~122°F

Storage Temperature: -20~60°C/-4~140°F

Environment Humidity: 10~90% RH

Display: LCD display with backlight, Response time: 1 s, Refresh Frequency: 1 s

Manifold Gauge's Weight: 1250 g (without batteries)

Set's Weight: 4 kg

The set includes the following:

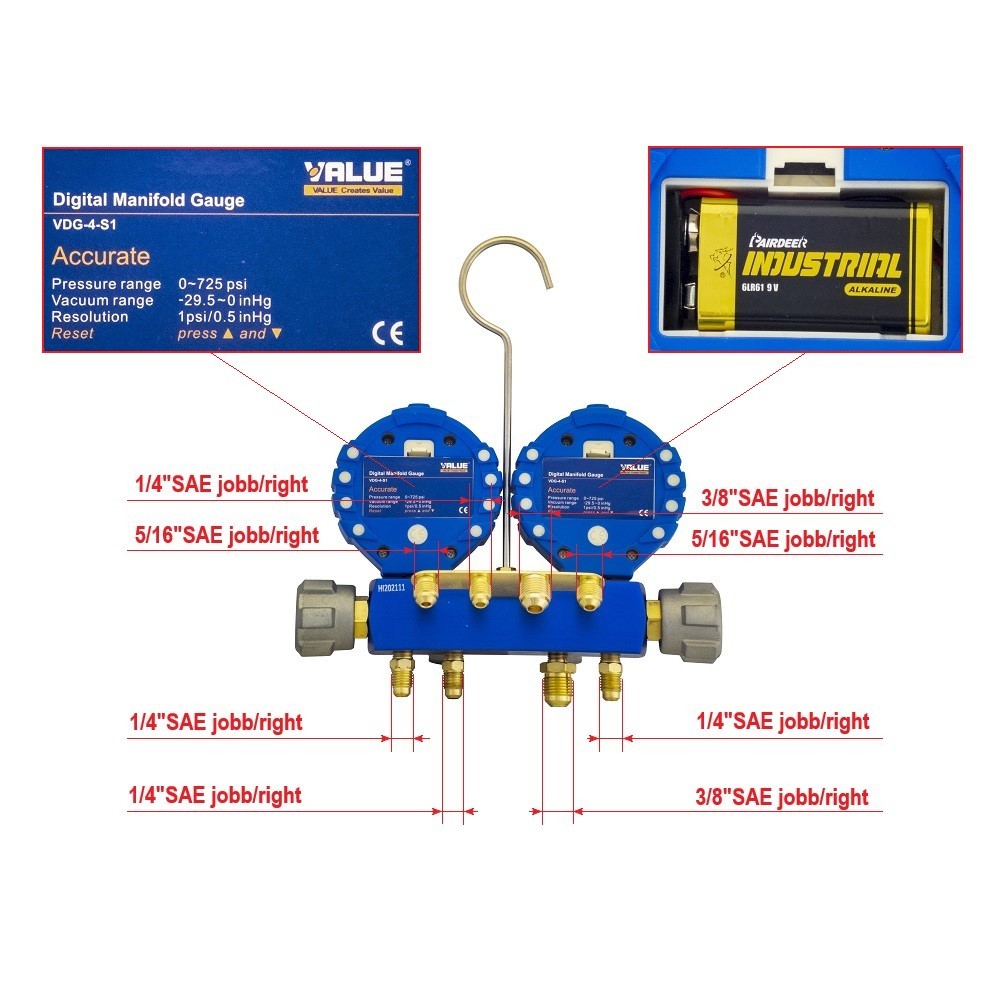

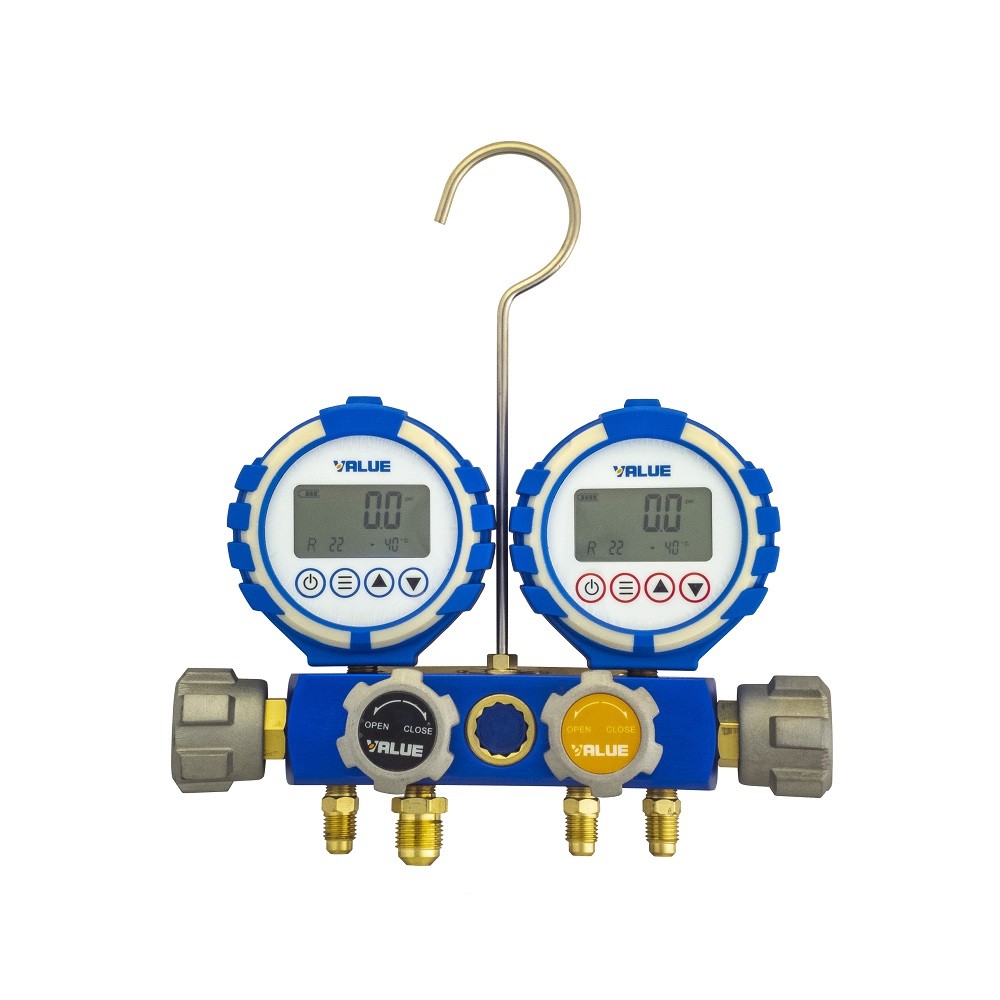

• 1 piece of VDG-4-S1 digital manifold gauge

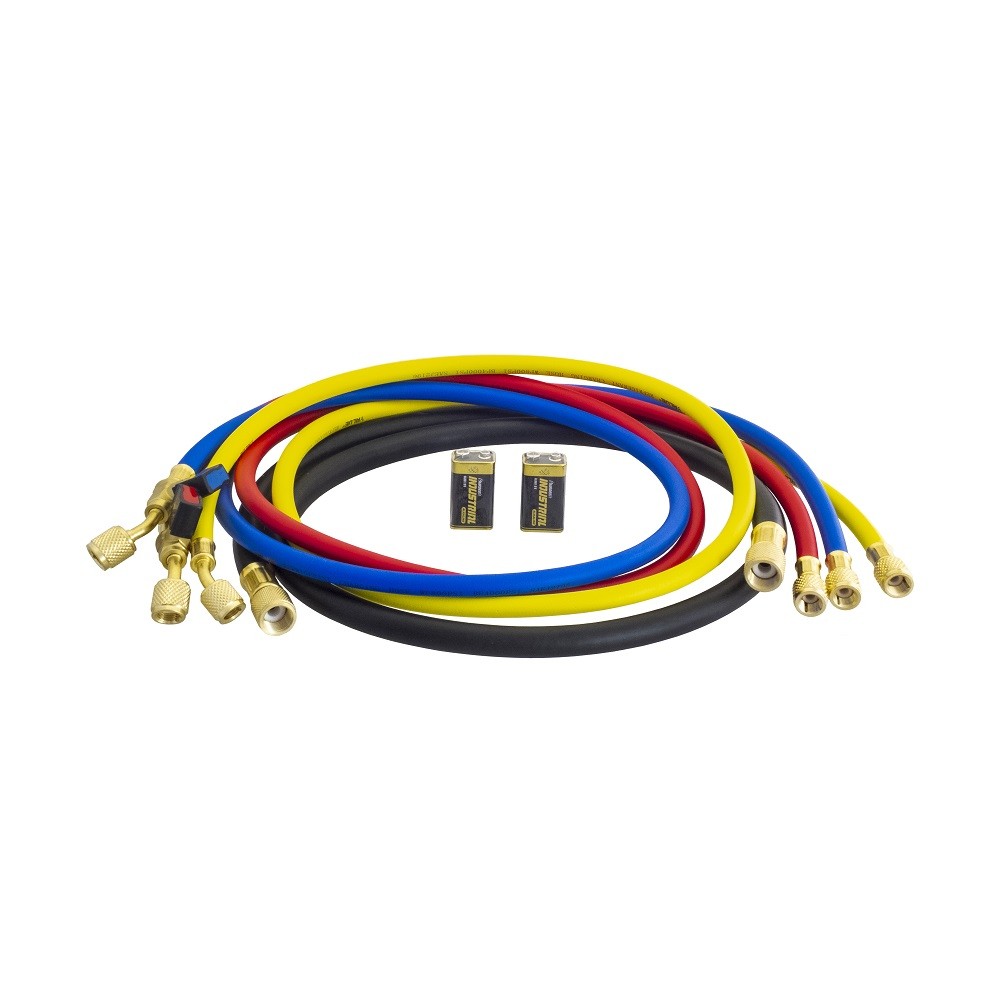

• 1 piece of 150 cm black filling pipe (3/8"SAE 180° - 3/8"SAE 180°)
• 1 piece of 150 cm blue filler pipe ( 1/4"SAE 180° - 5/16"SAE 60° with valve)
• 1 piece of 150 cm red filler pipe ( 1/4"SAE 180° - 5/16"SAE 60° with valve)
• 1 piece of 150 cm yellow filling pipe (1/4"SAE 180° - 1/4"SAE 60°)
• 2 pieces of 9V battery

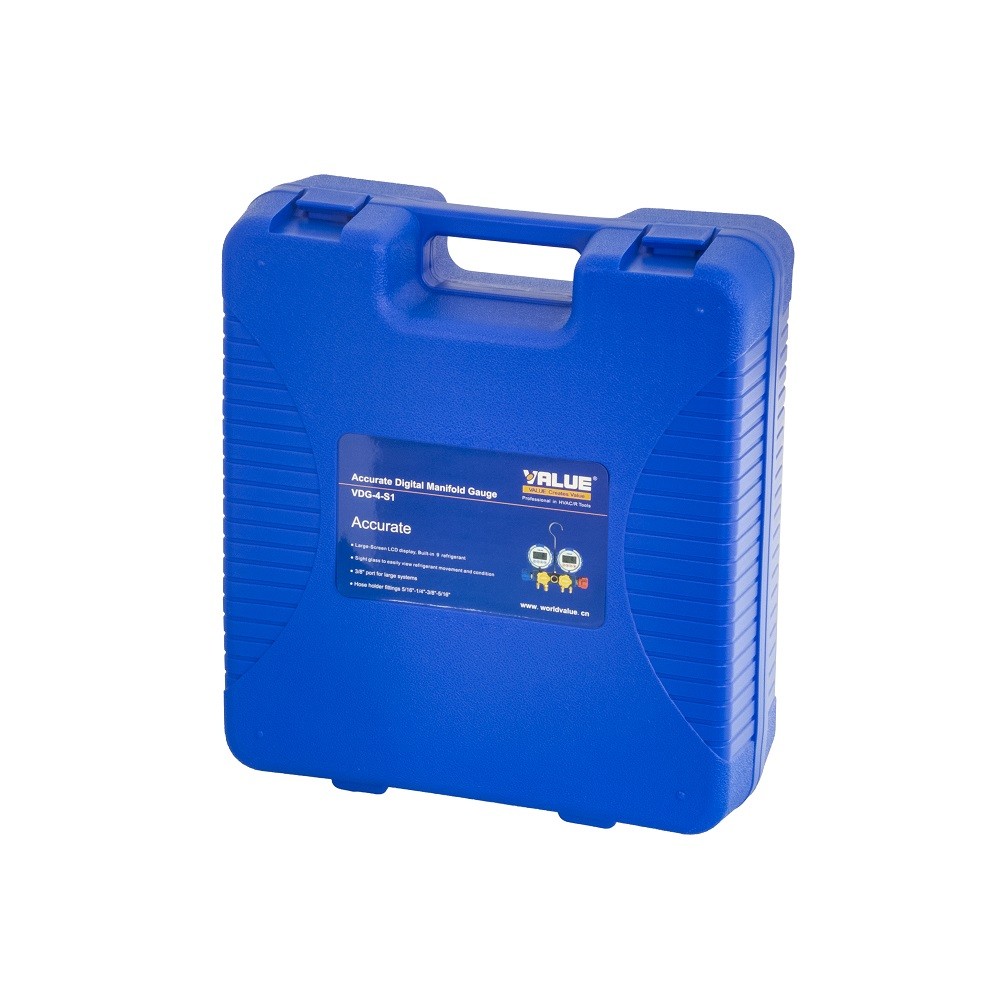

• 1 piece of impact-resistant plastic manifold suitcase

Not suitable for measuring ammonia (R717)!
