Manometer description:

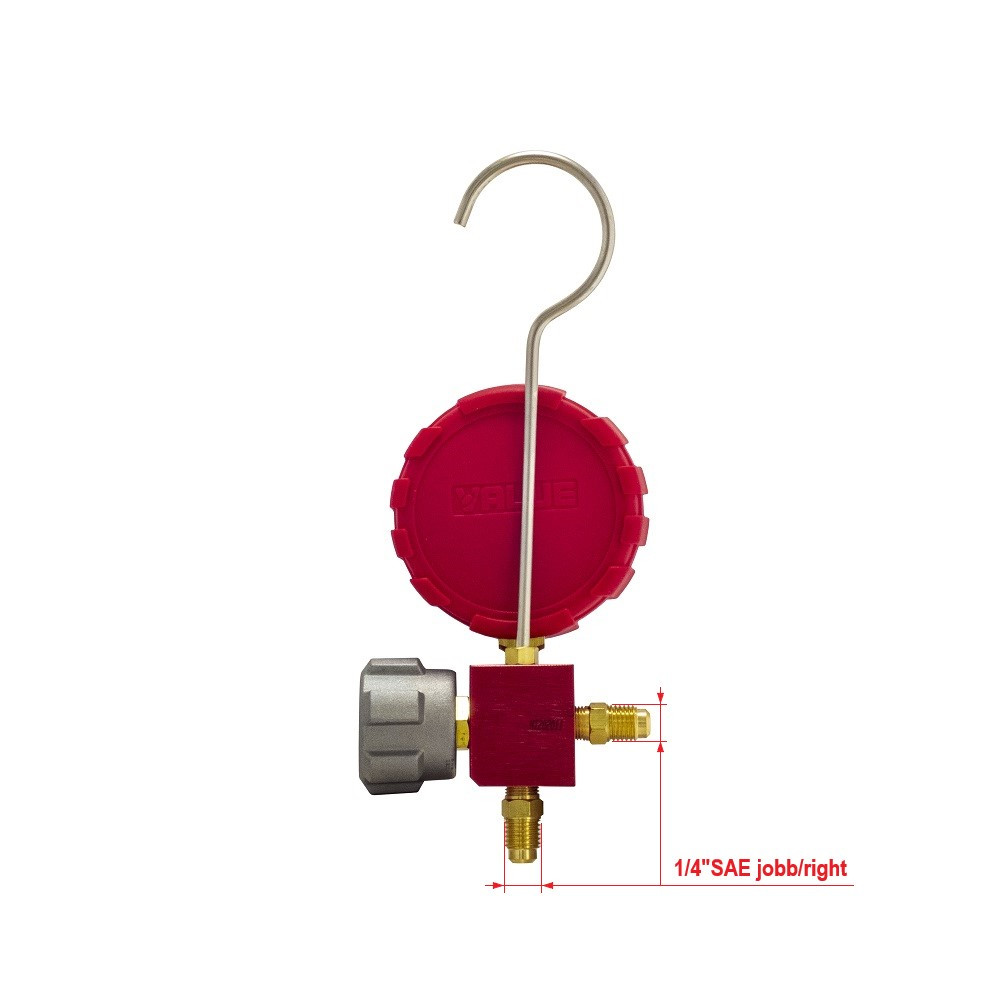

The VMG-1-S-H manometer has an anodized aluminum valve body, two connection options (1/4" SAE), sight glass, and rubberized valve.

The manometer housing is rubberized and resistant to small impacts.

Its hook makes work easier.

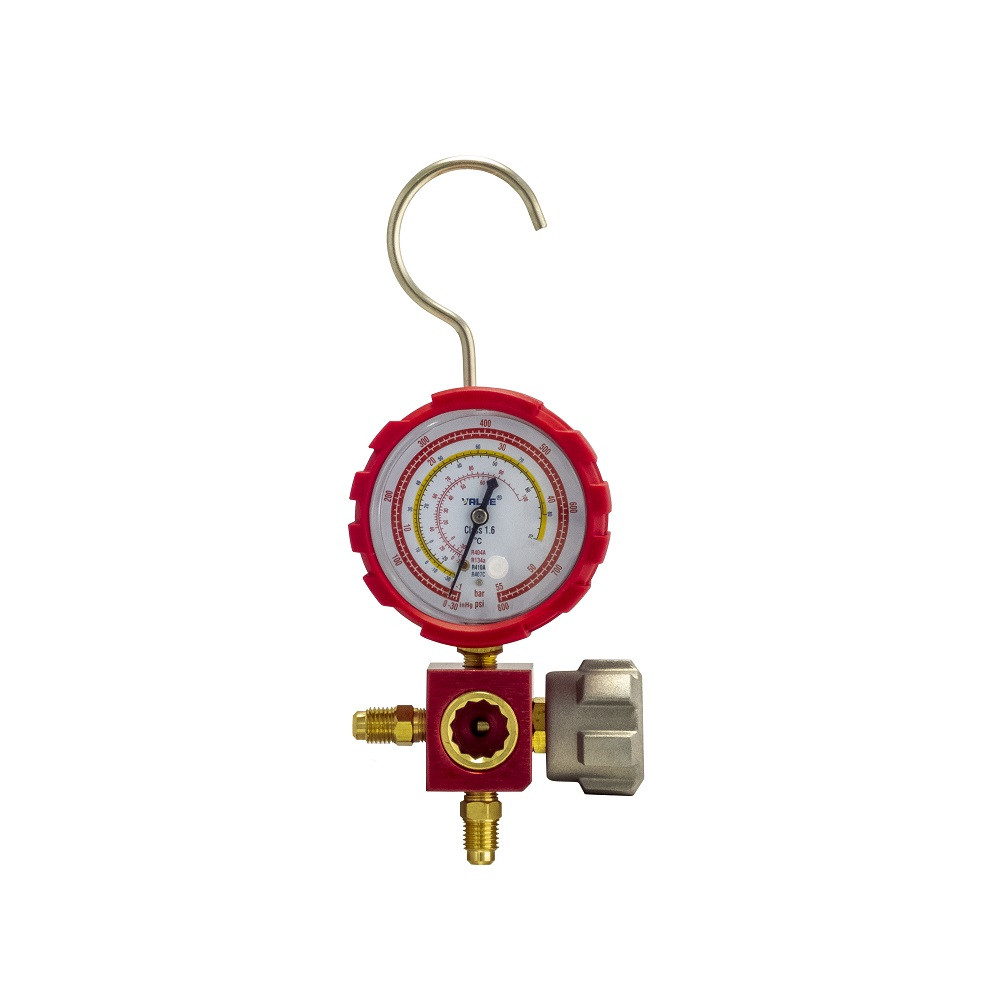

The diameter of the gauge is 68mm, its measurement range is -30~800psi -30~0 inHg vacuum.

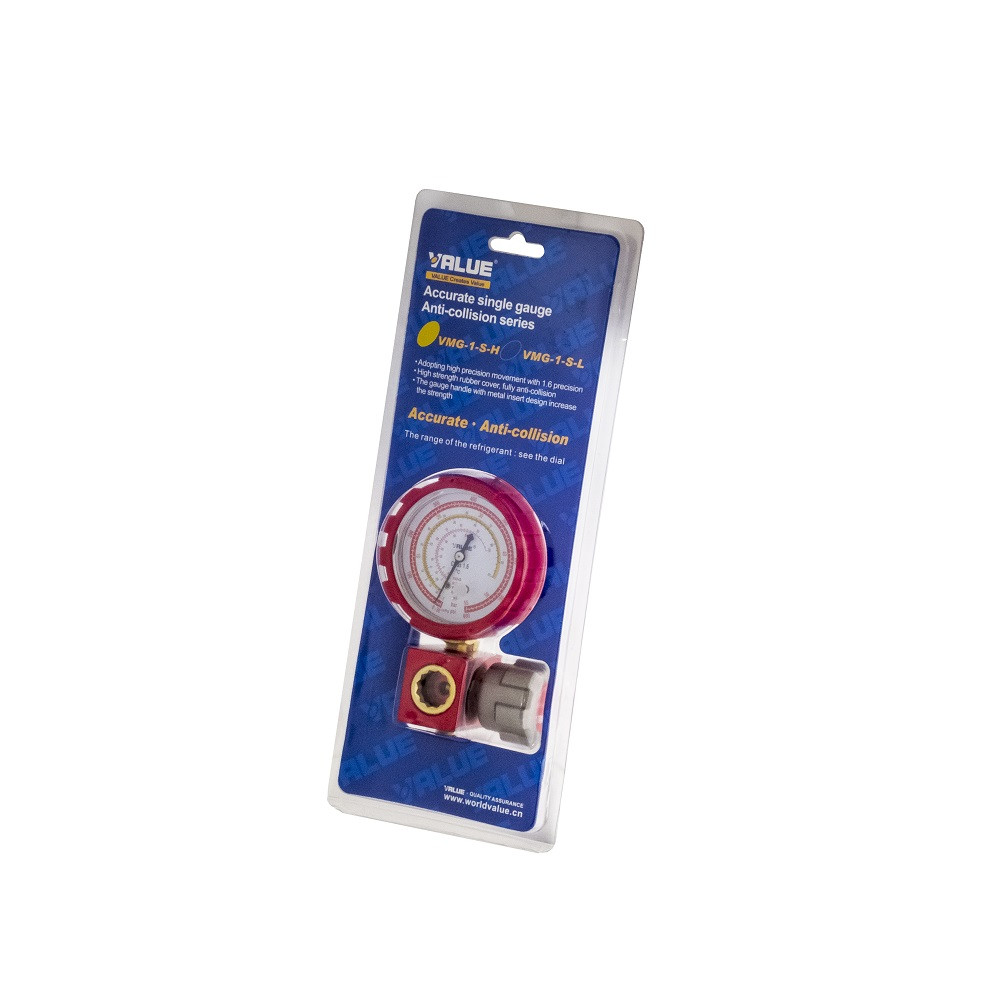

The product comes in blister packaging.

The connectors of the filling pipes must be attached manually to the faucet and to the cooling system. Do not use pliers, in case of overtightening, the Teflon seal may deform, causing leakage.

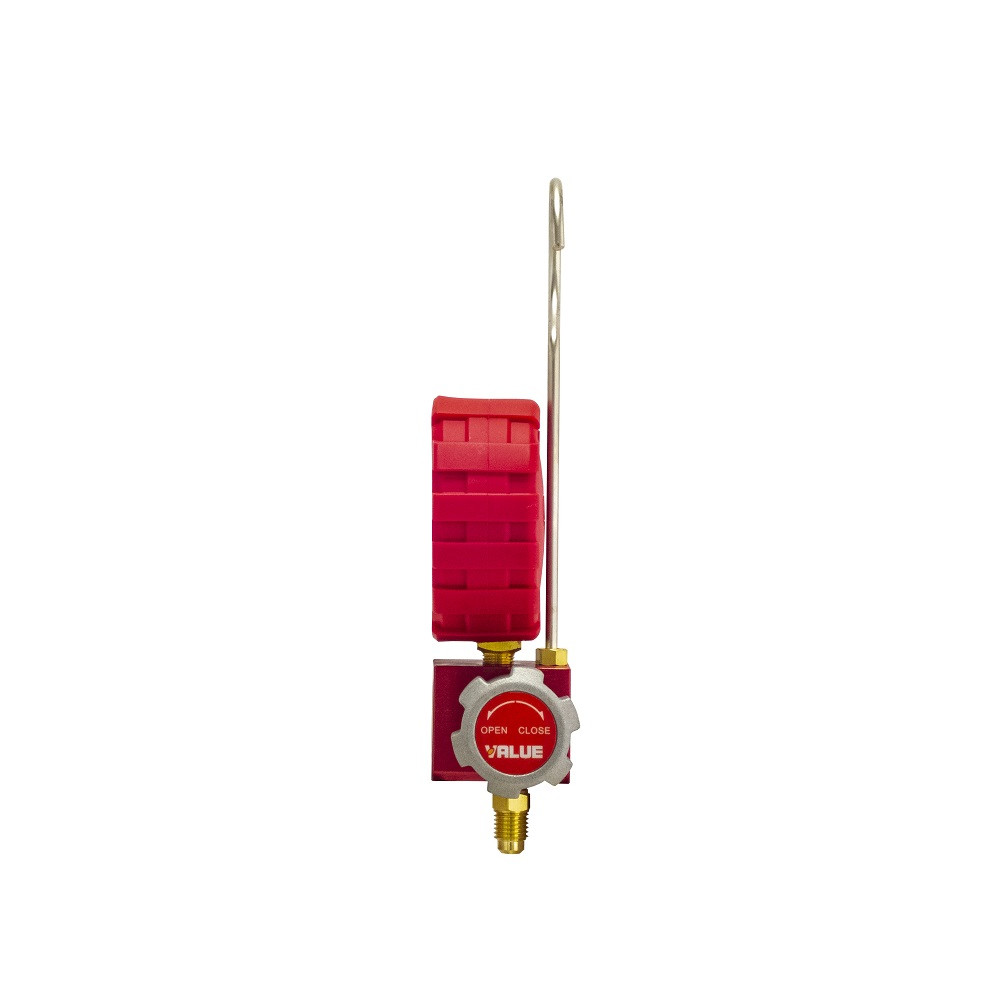

The taps on the faucet open to the left (counter-clockwise) and close to the right (clockwise).

Do not overload the manometer!

In the event of an overload, its internal structure is damaged, which is not visible from the outside, but affects the work with incorrect measured data. Recommended refrigerant types: R134a, R410A, R404A, R407C, R22, R12.

Vacuum display unit: inHg.
