Vacuum Pump VP-1ZBP Accumulator 1 stage

Name: Vacuum Pump VP-1ZBP Accumulator 1 stage
SKU: 6119
Price: 271.17 EUR
Availability: InStock

With the design of the direct current motor, while ensuring the same pumping speed, the structure became more compact and smaller, and the use of aluminum for the oil tank and engine housing made it lighter. The reduction in weight due to the smaller size and the handy and strong handle have made the pump more comfortable to carry and use. The rotor design improves final vacuum and discharge rate, reduces pump exhaust time, and ensures the removal of refrigerant and contaminants from the system. The long, active filter inlet filter effectively prevents foreign materials from entering the pump housing, and the filter effectively separates the oil spray from the exhaust gas. Furthermore, the battery-powered design makes it easier to work even in hard-to-reach places.

Delivery capacity: 3,6 m³/h

Details

In stock

Ultimate Vacuum

Egylépcsős

Kétlépcsős

Flow Rate

< 4 m3/h

271.17 € (213.52 €+57.65 €VAT)

Bonus point : 8.13 €

Details

Technical Parameters:

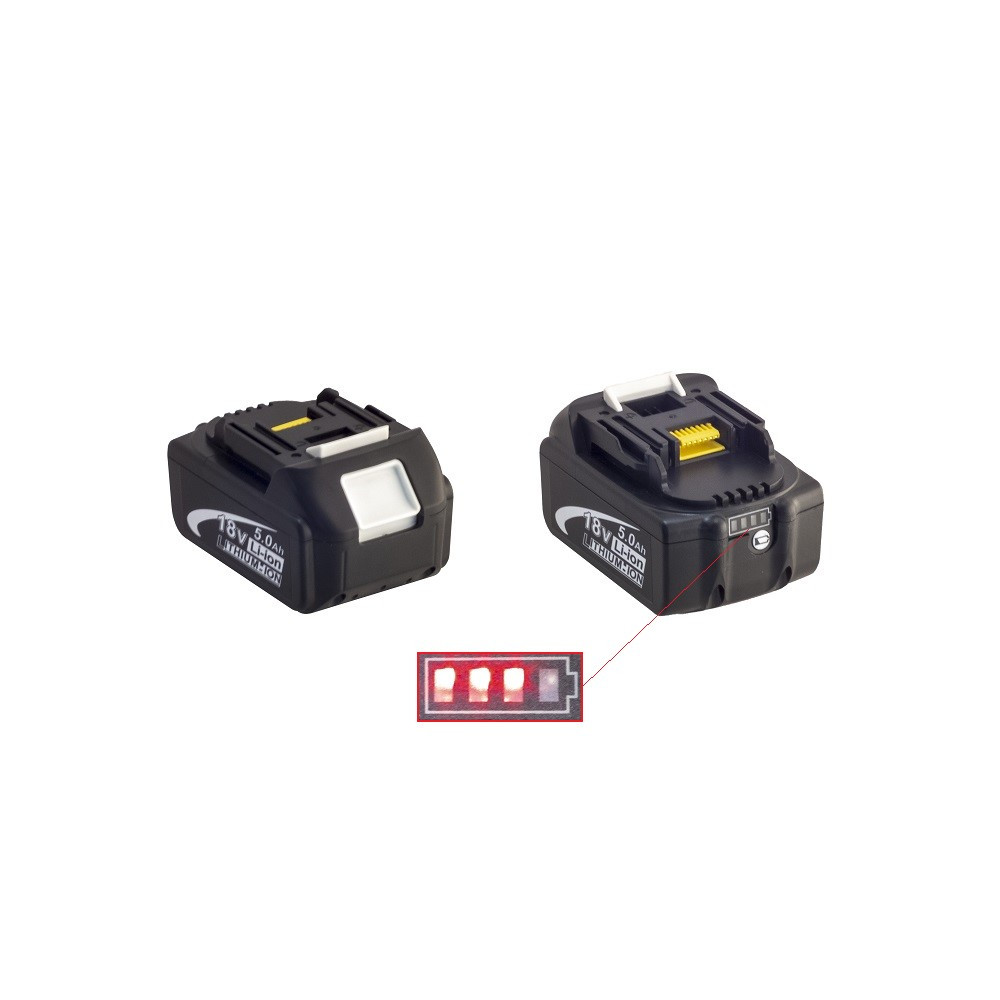

Battery: DC 18V 5.0 Ah
Flow Rate: 2 CFM (56,6 L/min)
Ultimate Vacuum: 150 micron / 2 Pa
Input Power: 150W
Intake Fitting: 1/4"SAE
Oil Capacity: 250 ml
Dimensions: 335x100x182mm
Net Weight: 3,8kg+oil+packing

Info

Flow Rate:

< 4 m3/h

Article No.:

6119

Weight:

5.1 kg/db
