Parameters:
Refrigerants: R134a, R14, R141B, R143A, R152, R170, R21, R218, R22, R227, R245, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R408A, R409A, R409B, R410A, R410B, R41, R411A, R411B, R412A, R413A, R414A, R415A, R417A, R50, R500, R501, R502, R503, R504, R507, R507A, R508A, R508B, R509A, R600A, R744, R11, R113A, R114, R115, R116, R12, R123, E123A, R124, R125, R13

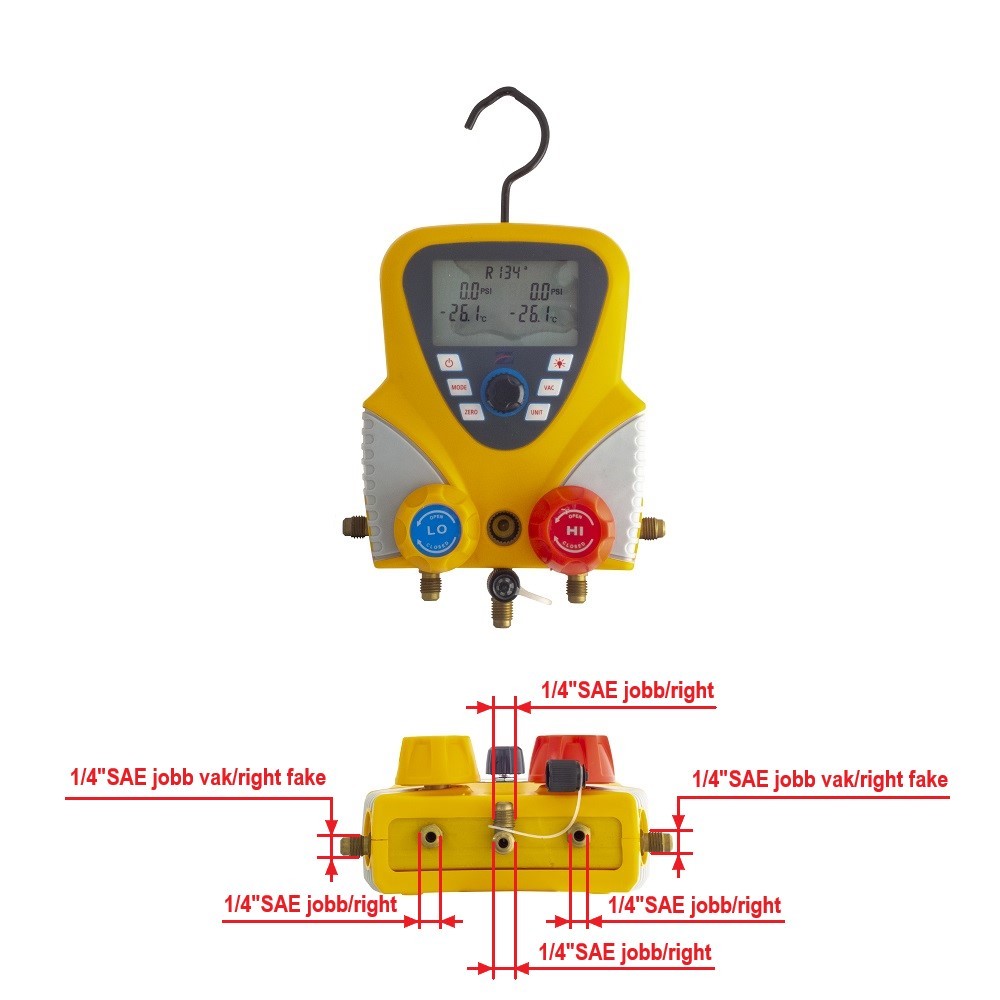

Pressure Connection: 3 x 1/4"SAE
Pressure Units psi, bar, KPa, inHg
Temperature Units: C°/F°.
Vacuum Unit: Micron / KPa
Pressure Scale:
- Low Pressure: 0-50 bar
- High Pressure: 0-50 bar
Temperature Scale: -20~70°C / -4~158°F
Vacuum Scale: 0~100 KPa
Maximum Over Pressure: 754 psi / 52 bar / 5200 KPa / 5.2 MPa
Pressure Measure Precision: ±0.5% of full scale
Temperature Measure Precision: ±0.5°C
Vacuum Measure Precision: ±5 Micron
Operation Temperature: -15~50°C/5~122°F
Storage Temperature: ±0.5°C
Environment Humidity: 10~90% RH
Display: LED display with backlight, Response time: 0.5 s
Manifold Gauge's Weight:800 g (without batteries)
Set's Weight: 3 kg
The set includes the following:
- 1 piece of ZR-M550 digital manifold gauge

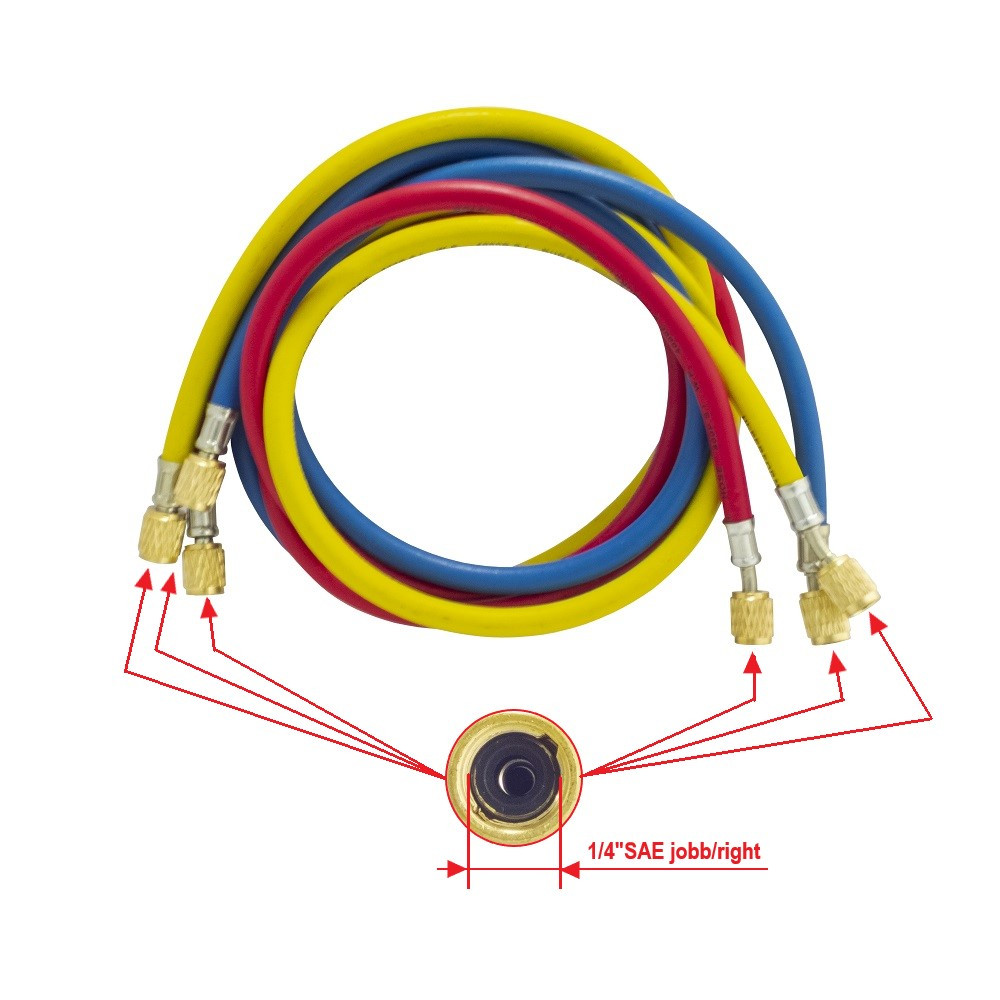

- 1 piece of 120 cm long blue filling tube ( 1/4"SAE 180° - 1/4"SAE 30°)
- 1 piece of 120 cm long red filling tube ( 1/4"SAE 180° - 1/4"SAE 30°)
- 1 piece of 120 cm long yellow filling tube ( 1/4"SAE 180° - 1/4"SAE 30°)

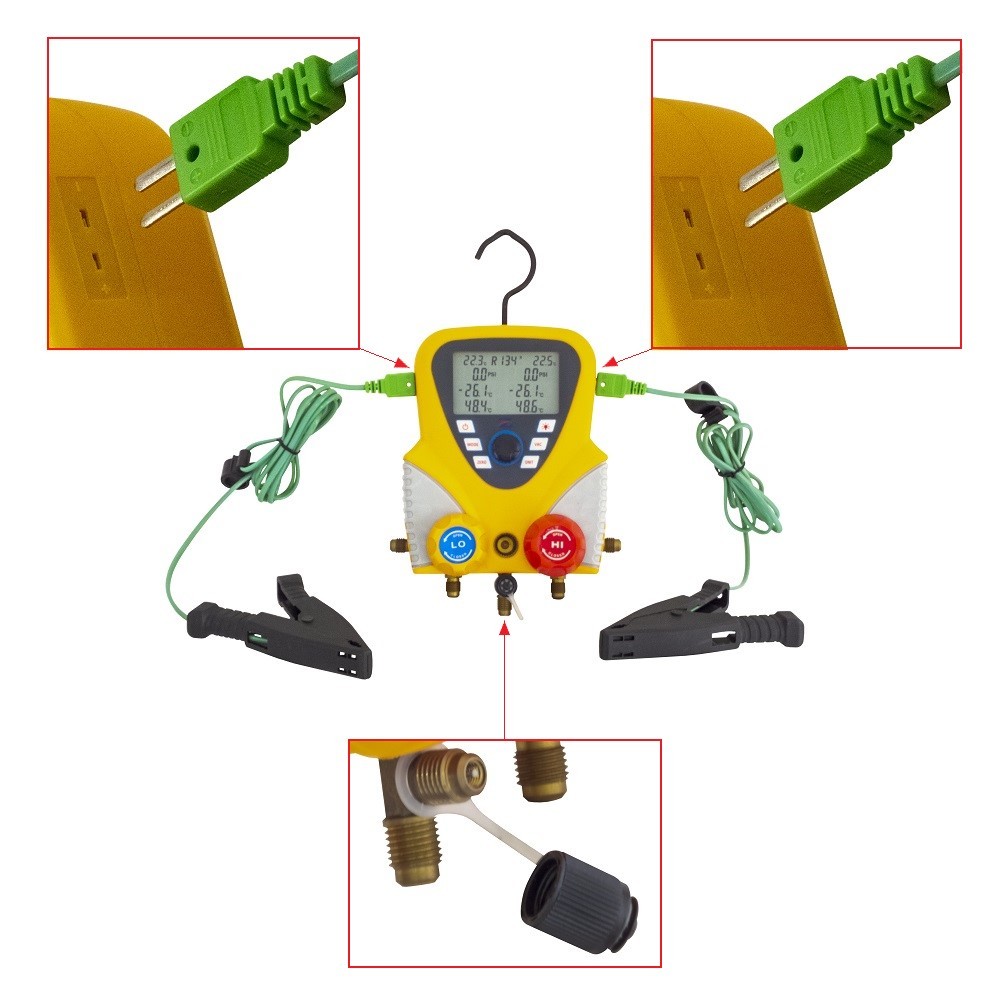

- 2 pieces of Temperature Sensor Clamp (K type)

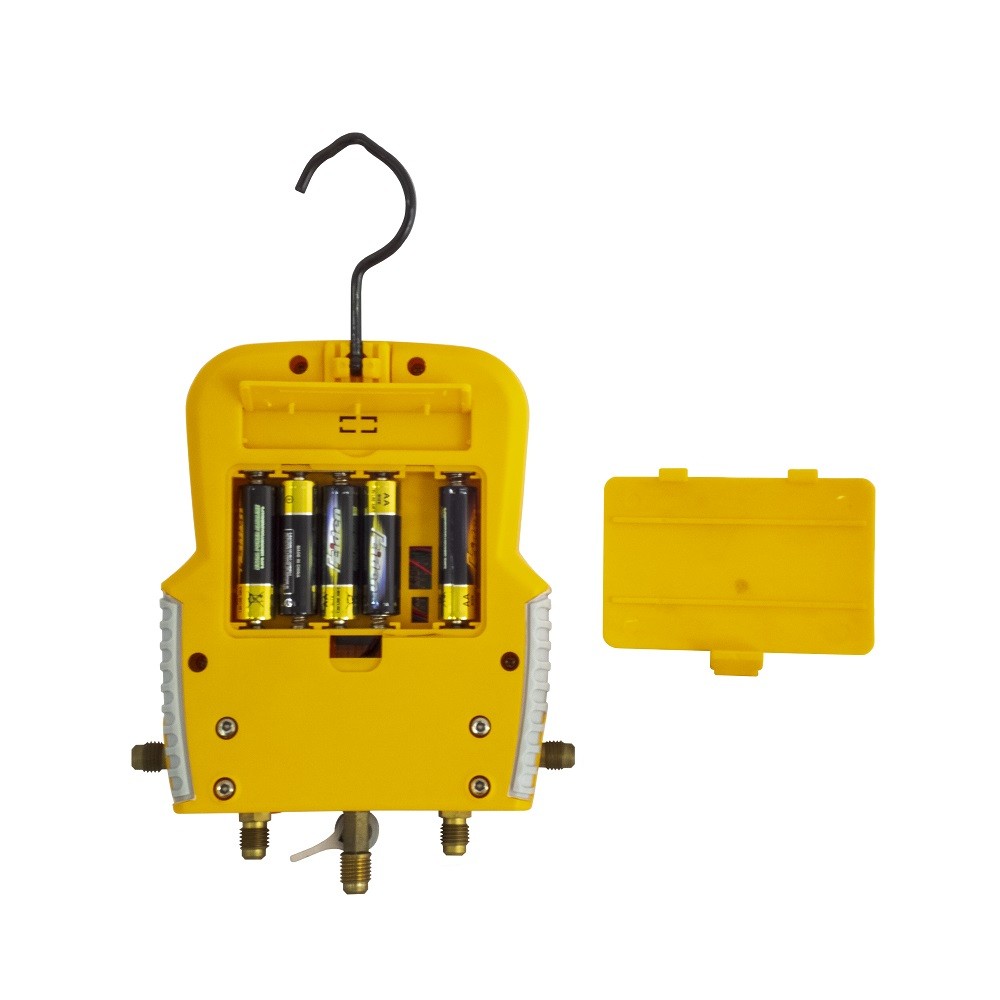

- 5 pieces of 1.5V AA batteries

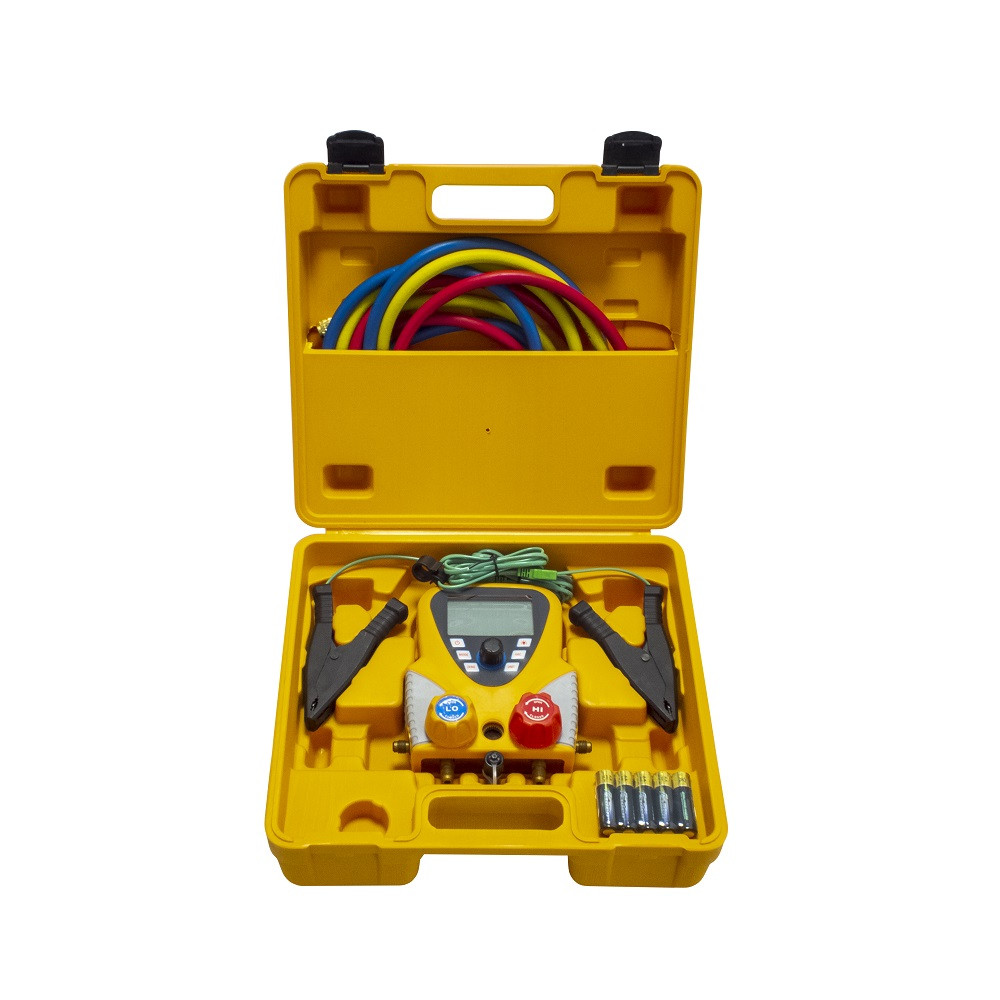

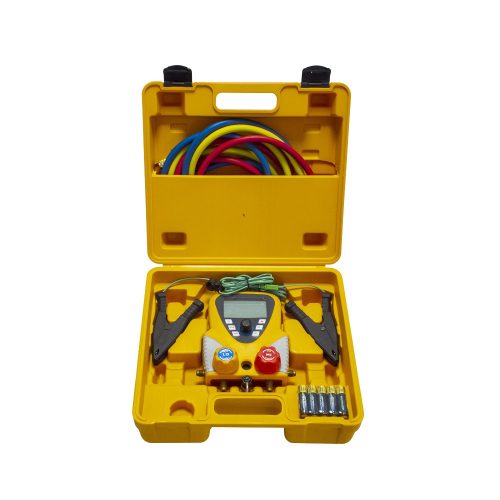

- 1 piece of impact-resistant plastic manifold suitcase
Not suitable for measuring ammonia (R717) and other ammonia refrigerants!
